Threat Modeling Guide for Software Teams

Start from your Dataflows

Today’s cyber threats can seem overwhelming. Ransomware, supply chain
attacks, backdoors, social engineering – where should your team begin?
The attacks we read about in breach reports often chain together in
unexpected and chaotic ways.

The key to cutting through complexity in threat modeling lies in tracing how data moves through your technology stack. Start with following where the data enters your boundary. Typically, it could be via user interfaces, APIs, message queues, or model endpoints. Dive into getting a deeper understanding of how it flows between services, through data stores, and across trust boundaries through integrated systems.

This concrete layout of the data flow between systems would transform vague worries, such as, “Should we worry about hackers?” into specific actionable questions. For example, “What happens if this API response is tampered with?” or “What if this model input is poisoned?”.

The Crux to Identifying Threats

From there on, identifying threats can become deceptively simple: follow each one of the data flows and ask “What can go wrong?”. You’ll find that this simple question will lead to complex technical and socio-behavioural analysis that will challenge your unconscious assumptions. It will force you to pivot from thinking “how system works” to “how system fails”, which in essence is the crux of threat modeling.

Let’s try it. We have an API for a messaging service that accepts two inputs: a message and the recipient’s ID, which then delivers the message to all internal staff. Follow through the carousel below to see how threats appear even this simple data flow.

Like illustrated in the carousel above, even a simple dataflow could warrant potential threats and cause havoc massively. By layering the question “What can go wrong?”, we have been able to expose this perspective that would otherwise remain hidden. The essence of doing this at this small scale leads to adding appropriate defense mechanisms incrementally within every data flow and therefore build a secure system.

STRIDE as a Practical Aid

Brainstorming threats can become open-ended without structured frameworks to guide your thinking. As you follow key data flows through your system, use STRIDE to turbocharge your security thinking. STRIDE is an acronym and mnemonic to help remember six key information security properties, so you can methodically identify common security vulnerabilities. Mentally check each one off each time you consider a data flow:

• Spoofed identity: Is there Authentication? Should there be? – Attackers pretending to be legitimate users through stolen credentials, phishing, or social engineering.
• Tampering with input: What about nasty input? – Attackers modifying data, code, or memory maliciously to break your system’s trust boundaries.
• Repudiation: Does the system show who is accountable? – When something goes wrong, can you prove which user performed an action, or could they plausibly deny responsibility due to insufficient audit trails?
• Information disclosure: Is sensitive data inappropriately exposed or unencrypted? – Unauthorized access to sensitive data through poor access controls, cleartext transmission, or insufficient data protection.
• Denial of service: What if we smash it? – Attacks aiming at making the system unavailable to legitimate users by flooding or breaking critical components.
• Elevation of privilege: Can I bypass Authorization? Move deeper into the system? – Attackers gaining unauthorized access levels, obtaining higher permissions than intended, or moving laterally through your system.

We use these STRIDE cards internally during threat modeling sessions either as printed cards or have them on screen. Another great way to help brainstorm, is to use GenAI. You don’t need any fancy tool just prompt using a normal chat interface. Give some context on the dataflow and tell it to use STRIDE- most of the time you’ll get a really helpful list of threats to consider.

Work ‘Little and Often’

Once you get the hang of identifying threats, it’s tempting to organize a
full-day workshop to “threat model” every dataflow in your entire syste
at once. This big-bang approach often overwhelms teams and rarely sticks as a consistent
practice. Instead, integrate threat modeling regularly, like continuous integration for security.

The most effective threat modeling happens in bite-sized chunks,
closely tied to what your team is working on right now. Spending fifteen
minutes examining the security implications of a new feature can yield
more practical value than hours analyzing hypothetical scenarios for
code that isn’t written yet. These small sessions fit naturally into
your existing rhythms – perhaps during sprint planning, design
discussions, or even daily standups.

This “little and often” approach brings multiple benefits. Teams
build confidence gradually, making the practice less daunting. You focus
on immediate, actionable concerns rather than getting lost in edge
cases. Most importantly, threat modeling becomes a natural part of how
your team thinks about and delivers software, rather than a separate
security activity.

It’s a Team Sport!

Effective threat modeling draws strength from diverse perspectives.
While a security specialist might spot technical vulnerabilities, a
product owner could identify business risks, and a developer might see
implementation challenges. Each viewpoint adds depth to your
understanding of potential threats.

This doesn’t mean you need formal workshops with the entire
organization. A quick conversation by the team’s whiteboard can be just
as valuable as a structured session. What matters is bringing different
viewpoints together – whether you’re a small team huddled around a
screen, or collaborating remotely with security experts.

The goal isn’t just to find threats – it’s to build shared
understanding. When a team threat models together, they develop a common
language for discussing security. Developers learn to think like
attackers, product owners understand security trade-offs, and security
specialists gain insight into the system’s inner workings.

You don’t need security expertise to start. Fresh eyes often spot
risks that experts might miss, and every team member brings valuable
context about how the system is built and used. The key is creating an
environment where everyone feels comfortable contributing ideas, whether
they’re seasoned security professionals or completely new to threat
modeling.

Navigation from here

Now that we’ve established the core principles of threat modeling, it’s time to put theory into practice. Like any skill worth mastering, threat modeling isn’t something you can fully grasp through explanation alone—it requires hands-on experience. The concepts might make sense intellectually, but the real learning happens when you start applying them. In the following sections, we’ll walk through practical exercises where you can actively identify threats alongside us, developing the mental frameworks that make effective threat modeling possible.

You’ll see, every threat modeling exercise follows the same pattern as seen below in the table, where a set of structured activities,
each leading to a specified outcome, is conducted within a team. We’ve also laid out a few different formats for the teams to run these activities.
For example, as quick sessions at a whiteboard, or as a singular long-ish workshop.
As with all agile ways of working, the key is finding what works in your team’s context.

The examples in this article are independent from each other. So you can pick and choose the one that which most suits your current needs, or feel free to stick through them all to gain varied perspectives.
Once you’ve grasped the gist of it, we highly recommend you pick a suitable format that fits your team’s ways of working
and give it a headstart immediately. Nothing can beat learning from hands-on practice!

Approach and Preparation

A quick whiteboard session within the team provides an accessible
starting point for threat modeling. Rather than attempting exhaustive
analysis, these informal 15-30 minute sessions focus on examining
immediate security implications of features your team is currently
developing. Let’s walk through the steps to conduct one with an example.

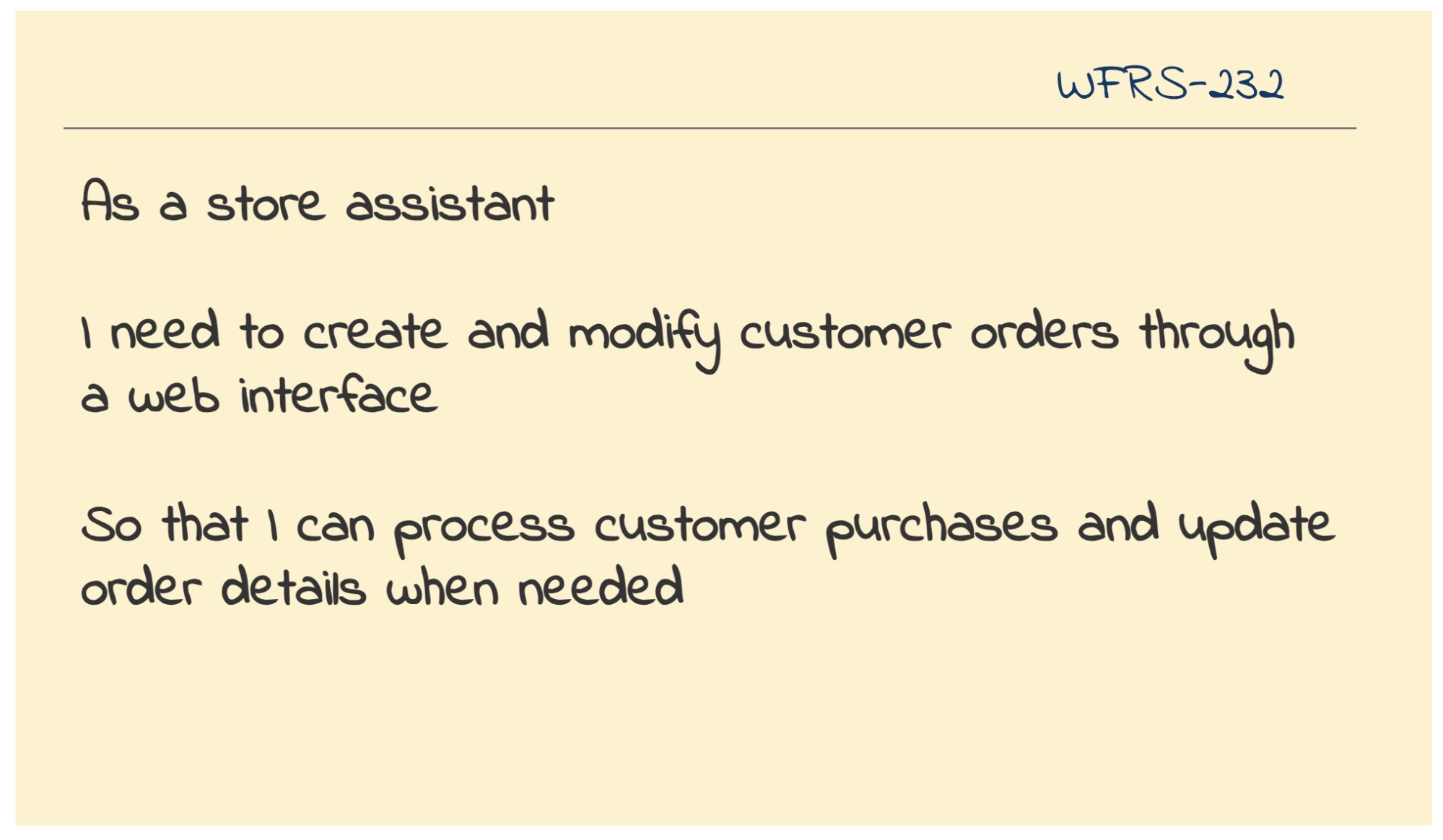

Let’s say, a software team is working on an order
management system, and is planning an epic, where store assistants can
create and modify customer orders. This is a perfect scope for a threat modeling session. It is focused on a single feature with
clear boundaries.

The session requires participation from development team members, who can elaborate the technical implementation.
It’s great to get attendance from product owners, who know the business context, and security specialists, who can provide valuable input
but don’t have to be blocked by their unavailability. Anyone involved in building or supporting the feature, such as the testers or
the business analysts too, should be encouraged to join and contribute their perspective.

The materials needed are straightforward:
a whiteboard or shared digital canvas, different colored markers for drawing components, data flows, and sticky notes for capturing threats.

Once the team is gathered with these materials, they’re ready to ‘explain and explore’.

Explain and Explore

In this stage, the team aims to gain a common understanding of the system from different perspectives before they start to identify threats.
Typically, the product owner begins the session with an elaboration of the functional flows highlighting the users involved.
A technical overview from developers follows after with them also capturing the low-level tech diagram on the whiteboard.
Here might be a good place to put those colored markers to use to clearly classify different internal and external systems and their boundaries as it helps in identifying threats greatly later on.

Once this low-level technical diagram is up, the entities that lead to financial loss, reputation loss, or that results in legal disputes are highlighted as ‘assets’ on the whiteboard before
the floor opens for threat modeling.

Identify Threats

In the whiteboarding format, we could run the blackhat thinking session as follows:

1. First, distribute the sticky notes and pens to everyone.
2. Take one data flow on the low-level tech diagram to discuss threats.
3. Ask the question, “what could go wrong?” while prompting through the STRIDE threat categories.
4. Capture threats, one per sticky, with the mandate that the threat is specific such as “SQL injection from
   Internet” or “No encryption of customer data”.
5. Place stickies where the threat could occur on the data flow visibly.
6. Keep going until the team runs out of ideas!

Remember, attackers will use the same data flows as legitimate users, but in unexpected ways.
Even a seemingly simple data flow from an untrusted source can cause significant havoc, and therefore, its essential to cover all the data flows before you end the session.

Prioritize and Fix

Time to turn threats into action. For each identified threat,
evaluate its risk by considering likelihood, exposure, and impact. You
can also try to come up with a dollar value for the loss of the
respective asset. That might sound daunting, but you just need to think
about whether you’ve seen this threat before, if it’s a common pattern
like those in the OWASP Top 10, and how exposed your system is. Consider
the worst case scenario, especially when threats might combine to create
bigger problems.

But we are not done yet. The goal of threat modeling isn’t to
instill paranoia, but to drive improvement. Now that we have identified the top
threats, we should adopt day-to-day practices to ensure the appropriate defense is built for them.
Some of the day-to-day practices you could use to embue security into are:

• Add security related acceptance criteria on existing user stories
• Create focused user stories for new security features
• Plan spikes when you need to investigate solutions from a security lens
• Update ‘Definition of Done’ with security requirements
• Create epics for major security architecture changes

Remember to take a photo of your threat modeling diagram, assign action items to the product owner/tech lead/any team member to get them into the backlog as per one of the above ways.
Keep it simple and use your normal planning process to implement them. Just tag them as ‘security-related’ so you can track their progress consciously.

Approach and Preparation

There are times when security demands a larger, more cross-programme, or
cross-organizational effort. Security issues often occur at the boundaries
between systems or teams, where responsibilities overlap and gaps are sometimes
overlooked. These boundary points, such as infrastructure and deployment
pipelines, are critical as they often become prime targets for attackers due to
their high privilege and control over the deployment environment. But when multiple teams are involved,
it becomes increasingly hard to get a comprehensive view of vulnerabilities across the
entire architecture.

So it is absolutely essential to involve the right people in such cross-team threat modeling workshops. Participation from platform engineers, application developers, and security specialists is going to be crucial. Involving other roles who closely work in the product development cycle, such as the business analysts/testers, would guarantee a holistic view of risks too.

Here is a preparation kit for such cross team threat modeling workshops:

• Collaborative tools: If running the session remotely, use tools like Mural,
  Miro, or Google Docs to diagram and collaborate. Ensure these tools are
  security-approved to handle sensitive information.
• Set a manageable scope: Focus the session on critical components, such as
  the CI/CD pipeline, AWS infrastructure, and deployment artifacts. Avoid trying
  to cover the entire system in one session—timebox the scope.
• Diagram ahead of time: Consider creating basic diagrams asynchronously
  before the session to save time. Ensure everyone understands the diagrams and
  symbols in advance.
• Keep the session concise: Start with 90-minute sessions to allow for
  discussion and learning. Once the team gains experience, shorter, more frequent
  sessions can be held as part of regular sprints.
• Engagement and facilitation: Make sure everyone actively contributes,
  especially in remote sessions where it’s easier for participants to disengage.
  Use icebreakers or simple security exercises to start the session.
• Prioritize outcomes: Refocus the discussions towards identifying actionable security stories as it is the primary outcome of the workshop.
  Prepare for documenting them clearly. Identify action owners to add them to their respective backlogs.
• Breaks and timing: Plan for extra breaks to avoid fatigue when remote, and ensure the session finishes on time with clear, concrete
  outcomes.

Explain and Explore

We have a worked example here where we focus on threat modeling the infrastructure
and deployment pipelines of the same order management system assuming it is hosted on AWS.
A cross functional team comprising of platform engineers, application developers, and security
specialists was gathered to uncover all of the localized and systemic vulnerabilities.

They began the workshop with defining the scope for threat modeling clearly to everyone. They elaborated on the various users of the system:

• Platform engineers, who are responsible for infrastructure management, have privileged access to the AWS Management Console.
• Application developers and testers interact with the CI/CD pipelines and application code.
• End users interact with the application UI and provide sensitive personal and order information while placing orders.

The team then captured the low-level technical diagram showing the CI/CD pipelines, AWS infrastructure components, data flows,
and the users as seen in the carousel below.

The team moved on to identifying the key assets in their AWS-based delivery pipeline based on the following conclusions:

• AWS Management Console access: Since it provides powerful capabilities for infrastructure management including IAM configuration,
  any unauthorized changes to core infrastructure could lead to system-wide vulnerabilities and potential outages.
• CI/CD pipeline configurations for both application and infrastructure pipelines:
  Tampering with them could lead to malicious code moving into production, disrupting the business.
• Deployment artifacts such as application code, infrastructure as code for S3 (hosting UI), Lambda (Order service), and Aurora DB:
  They are sensitive IP of the organization and could be stolen, destroyed or tampered with, leading to loss of business.
• Authentication service: Since it allows interaction with the core identity service,
  it can be abused for gaining illegitimate access control to the order management system.
• Order data stored in the Aurora database: Since it stores sensitive business and customer information, it can lead to loss of business reputation when breached.
• Access credentials including AWS access keys, database passwords, and other secrets used throughout the pipeline:
  These can be used for ill intentions like crypto mining leading to financial losses.

With these assets laid on the technical diagram, the team put on their “black hat” and started thinking about how an attacker might exploit the
privileged access points in their AWS environment and the application-level components in their delivery pipeline.

Identify Threats

The team once again adopted the STRIDE framework to prompt the discussion
(refer worked example under ‘Quick Team Threat Modeling’ section above for STRIDE framework elaboration) and captured all their
ideas as stickies. Here’s is the list of threats they identified:

Prioritize and Fix

The team had to prioritize the threats to identify the right defense measures next. The team chose to vote on threats based on
their impact this time. For the top threats, they discussed the defense measures as buying secret vaults,
integrating secret scanners into the pipelines, building two-factor authentications, and buying specific off the shelf security related products.

Apart from the tools, they also identified the need to follow stricter practices such as the ‘principle of least privileges’ even within the platform team
and the need to design the infrastructure components with well thought through security policies.
When they had successfully translated these defense measures as security stories,
they were able to identify the budget required to purchase the tools, and a plan for internal approvals and implementation, which subsequently
led to a smoother cross-team collaboration.
